Product Description

Basic Info

Model NO. M-23

Heating and Ventilation Equipment Type Hot Blast Stove

Epidemic Prevention Equipment Mobile Vaccination Car

Computerized Computerized

Certification ISO9001:2008, CE

Condition New

Advantage Save Manpower

Material Hot DIP Galvanized Sheet

Cooling Pad 1.66m/1.96m/2.16m Height

Chicken Drinker Plasson-Bigdutchman-Lubing Nipple Drinker

Chicken Feeder Plasson-Bigduthcman-Valco Ground Pan Feeder

Environment Controller Israel Agrologic T607/T616/Image II

Fan System 50"Blower Fan/50"Cone Fan/Air Inlet

Feature Saving Manual Power

Heater Gas/Diesel/Electric

Name Chicken Poultry Farm Building

Curtain for Side Wall

Feed Pan New PP Material

Drip Cup New PP Material

Operation Full Automatic/Environment Controlled

Slat Floor 1.2mx0.5m Per PC

Transport Package Container/Carton Box

Specification 450ftx52ft 100mx18m. etc

Origin Shandong, China

HS Code 8436290000

Production Capacity 5000 Sets Per Month

Packaging & Delivery

Package Size 12.00cm * 20.00cm * 12.00cm

Package Gross Weight 20.000kg

Product Description

Main Systems Overview

1 Main feed line system

2 Automatic pan feeding line system

3 Automatic nipple drinking line system

4 Automatic ventilation system

5 Cooling pad system

6 Environment controller

7 Spraying & disinfecting system

8 Heating system/Heater

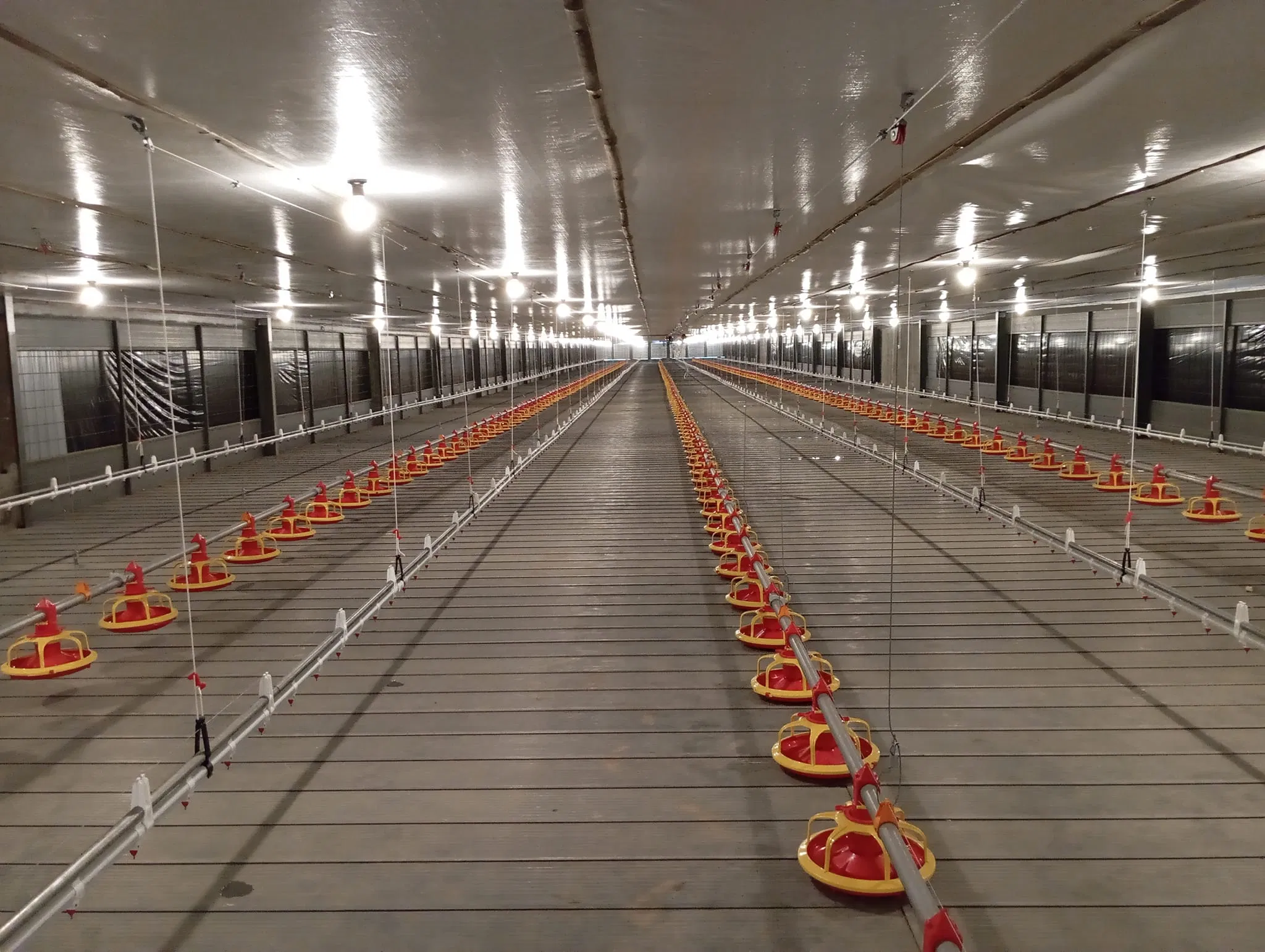

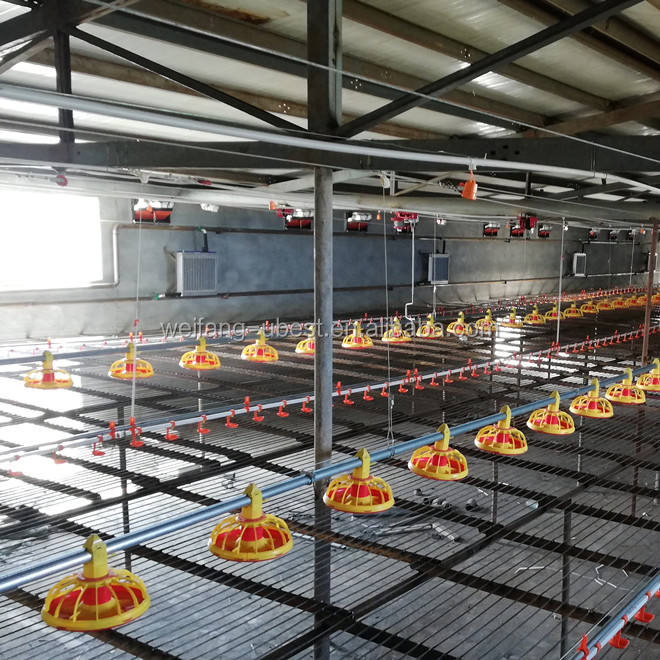

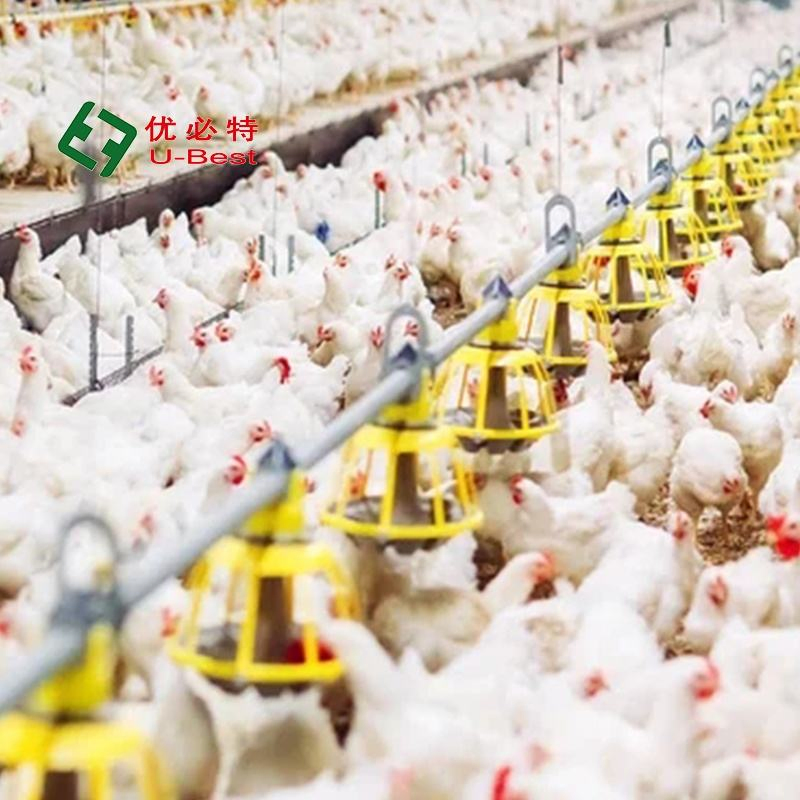

1. Automatic Pan Feeding Line System

There is a pan feed sensor at the end of each feeding line which controls motors on and off to achieve automatic feed delivery.

Components of Pan Feeding Line System:

(1). Silo Features:

Silo with standard ladder and guard railing is safe and reliable.
Solid connection and good sealing performance.
Steel sheet double-layer galvanized ensure a service life of more than 10 years.
FRP (Fiber reinforced plastics) silo has a good performance of anti-corrosive, moisture-proof, and easy installation.

Model	Volume	Height (no foundation)	Diameter
MRS-4.0(1802)	6.2M³	4.9M	1.833m
MRS-7.3(2701)	11.2M³	4.5M	2.75m
MRS-10.6(2702)	16.4M³	5.68M	2.75m
MRS-14.0(2703)	21.6M³	6.8M	2.75m
MRS-20.8(3602)	32M³	6.9M	3.667m
MRS-27.3(3603)	42M³	7.9M	3.667m

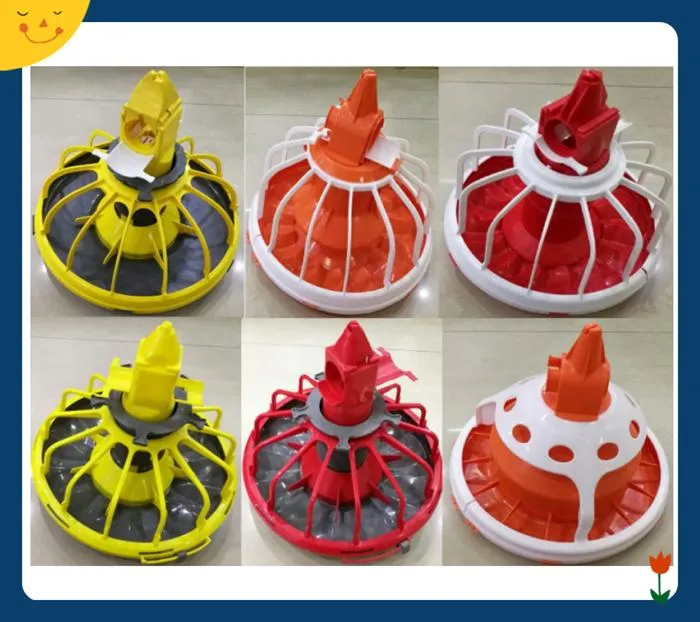

(2). Feeder pan: 40-50 birds; 100% PP material.
(3). Feed pipe and Auger: Auger imported from South Africa.
- Structure: 4 pans / 3m or 3 pans / 3m, 45mm diameter.
- Made of high quality spring steel.
- Long service life and not easily deformed.
(4). Delivery: 36mm diameter Auger; capacity of 450kg/h.
(5). Hopper: 70kg/90kg, 1.5mm thickness, galvanized sheet.
- Surface spray treatment, wear-resistant, anti-corrosion, beautiful appearance.
- The whole hopper is detachable, saving more space.
- Four different sizes of hoppers for choice, and customizable according to requirements.
(6). Feed sensor: Germany IFM or Israel Agro logic.
(7). Driving motor: 0.75kw, 380V/220V, 50HZ/60HZ, three phase or single phase.
- Die-cast aluminum alloy shell and input/output flange, excellent heat dissipation, no rust, stable and reliable.
- Split Gearbox, quick and easy to replacement.
(8). Turbo: Convenient for feeding, easy to clean, beautiful appearance.

Product Features:

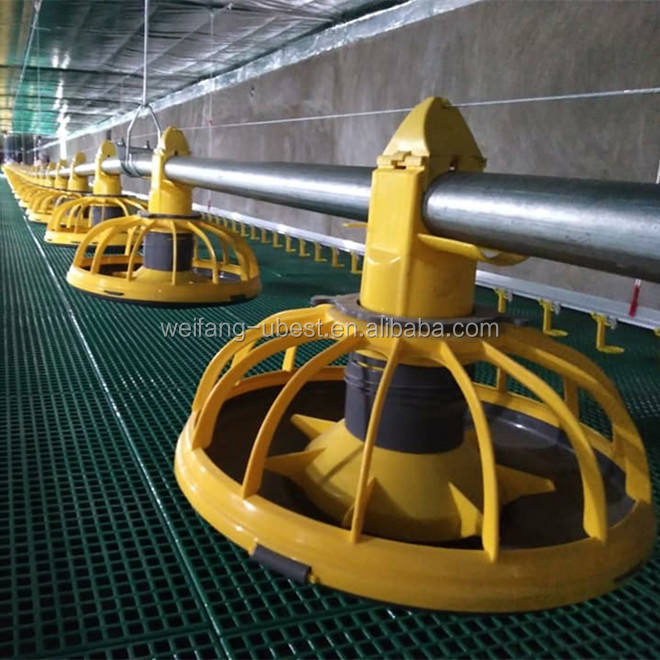

Round pan feeders are made of corrosion-proof plastic.
The enclosed feeder tube keeps feed fresh, allowing pans to swing freely.
'V'-shaped pan bottom and double pan lip help to catch feed.
Feed windows work with available chutes.

System Advantages:

Provides birds more eating space and ensures top feed conversion.
Consists of just two precision-molded parts plus chutes or flood collar if used.
Allows birds to enter and exit pans easily without restriction.
Attaches securely to dome, or hangs for easy cleaning and drying.
Innovative design recognized by the American Society of Agricultural.

Rotary Feed Gate:

Adjusts the feeder's variable flood level.
As birds grow, you can close the rotary gate and use one of the six grow-out feed settings.
Pan edge is both deep and shallow - controls waste and gives easy feed access.

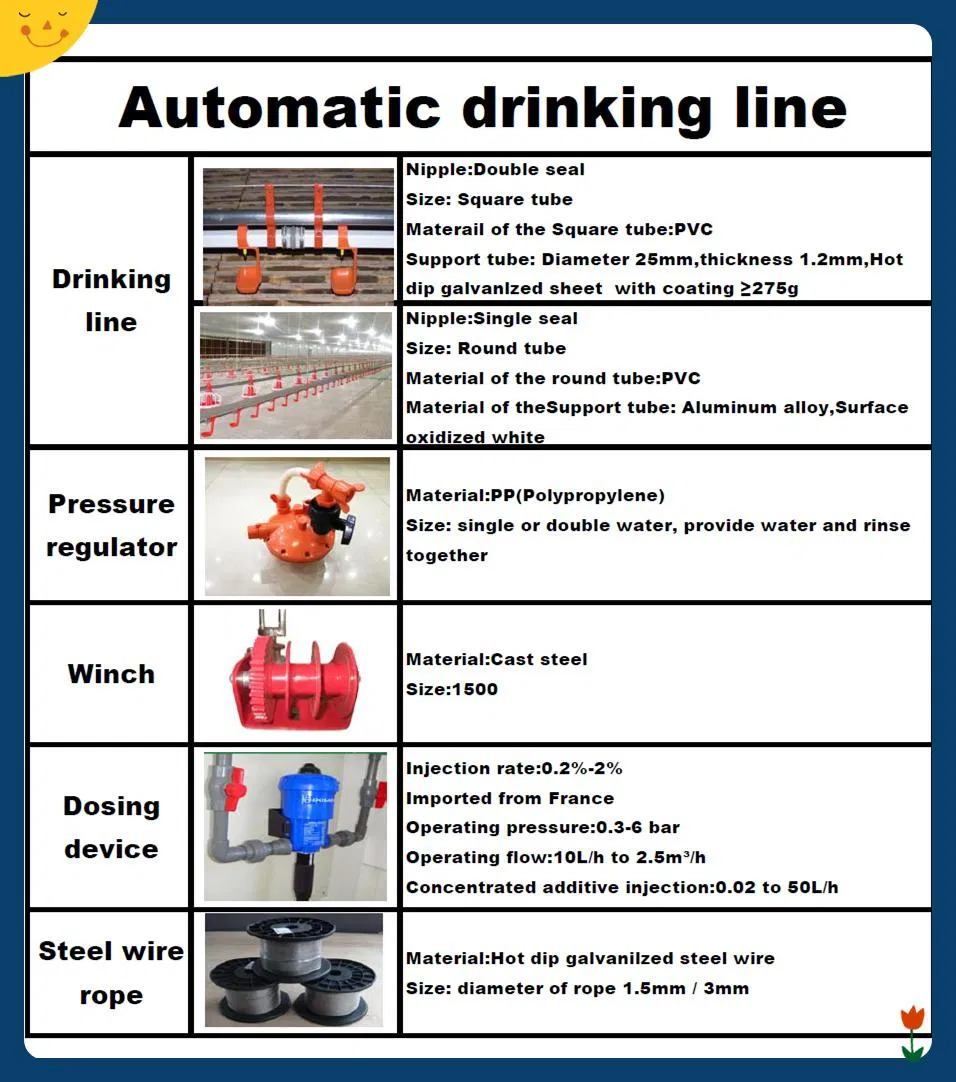

2. Automatic Nipple Drinking Line System

This system provides fresh and clean water for poultry, which is crucial for optimal growth. The drinkers can be triggered from 360 degrees, helping young birds start well and making drinking much easier.

Components of Nipple Drinking Line System:

(1). Nipple Features:
- 360 degree action triggering.
- Made of POM and stainless steel.
- Double-sealed with cone valve.
- Good sealing effect and strong stability.
(2). Pipe options:
- Square water pipe: Adopts 22×22 pure raw material PVC square tube to reduce bacteria and moss growth.
- Round water pipe: Plasson type, aluminum alloy support, corrosion-resistant, smooth water flow, and convenient snap-in installation.
(3). Regulator: Available in one-outlet or two-outlet models. Integrated pressure regulation, recoil, and water level display. Easy operation and quick response. Internal valve made of pure raw material, soft and anti-aging.
(4). Water drip cup: Available in one-arm or two-arm configurations. Hollow design ensures high stability.
(5). Lift winch: Gear processed for wear resistance and strength, overall surface sprayed, offering a pretty appearance and long service life.
(6). Filter: Primary function is to purify water and avoid blocking the nipples.
(7). Doser/Medicator: Precise metering for all flow rates. High dosing range and high flow rates. Long service life and high operational safety with selective spare parts kits for rapid wear-part replacement.

System Advantages:

Maximum hygiene.
Optimum water intake even for day-old birds.
Super proportional increase of passage rate.
Allows animals to take in water more easily.
Keeps litter dry.
High operational reliability.

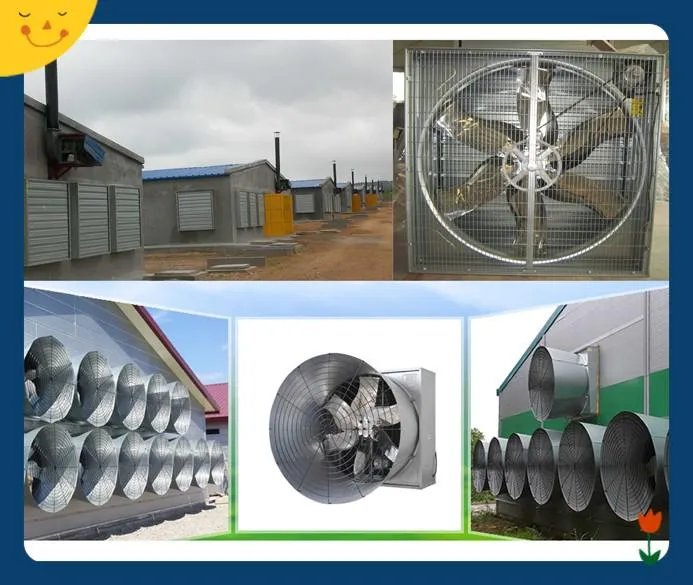

3. Automatic Ventilation System

This system controls climate conditions, fresh air, humidity, and temperature inside the poultry shed. It is vital for growing birds, including air inlets, axial flow fans, and butterfly cone fans for your choice.

Exhaust Fans Features & Options:

Models: Centrifugal box fan; Hanging fan; Shutter/Butterfly cone fan; Speed variable fan.
Sizes: 24'', 36'', 50'', 50'' cone.
Structural features: Minimum wind resistance and optimum performance. Belt automatic tensioning device improves transmission efficiency and prolongs service life. High quality hot-dip galvanized steel sheet frame. Three-phase motor with 3C certification, high efficiency and energy-saving.
Key Advantages: High air flow rate on both air admission and exit sides. Low energy costs with minimal air resistance. Low noise level. Stable, robust, and simple construction made of polypropylene for high corrosion resistance and long service life. Easy to assemble and install.

Detailed Parameters of 24" Fan

Flow amount	10600 m³/h
*Size (LWH)*	750 * 750 * 450 mm
Noise level	≤70DB
Power	0.37kw
Voltage	380V/220V

Detailed Parameters of 36" Fan

Flow amount	20800 m³/h
*Size (LWH)*	1000 * 1000 * 450 mm
Noise level	≤64DB
Power	0.37kw
Voltage	380V/220V
Current	1.6A
Weight	66kg

Detailed Parameters of 50" Fan

Flow amount	43070 m³/h
*Size (LWH)*	1380 * 1380 * 450 mm
Noise level	≤65DB
Power	1.1kw
Voltage	380V/220V
Current	2.8A
Weight	88kg

Detailed Parameters of 50" Cone Fan

Flow amount	49452 m³/h
*Size (LWH)*	1460 * 1460 * 580 mm
Noise level	≤65DB
Power	1.1kw
Voltage	380V/220V

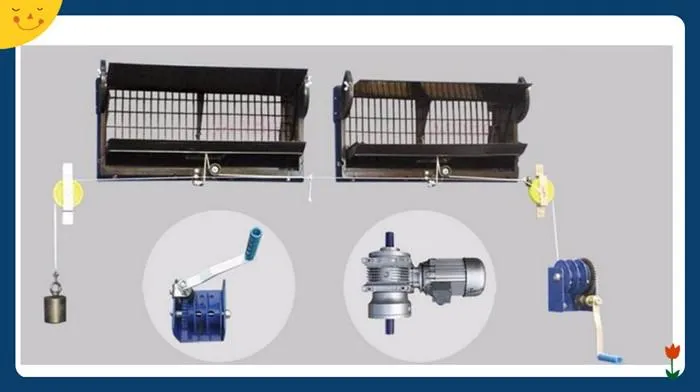

Air Inlets

Features:

Use: Designed with hood type for breeder houses, or mesh type for broiler houses.
Winch: Available in manual or automatic operations.

Advantages:

Formulated with UV-resistant additives for stronger anti-aging capability and longer service life.
Unique structure on the window edge ensures a closer and firmer seal.
Wind deflector design guarantees an optimized ventilation direction.
Double spring system delivers excellent sealing performance.
Flexible opening window equipped with anti-bird protection nets.

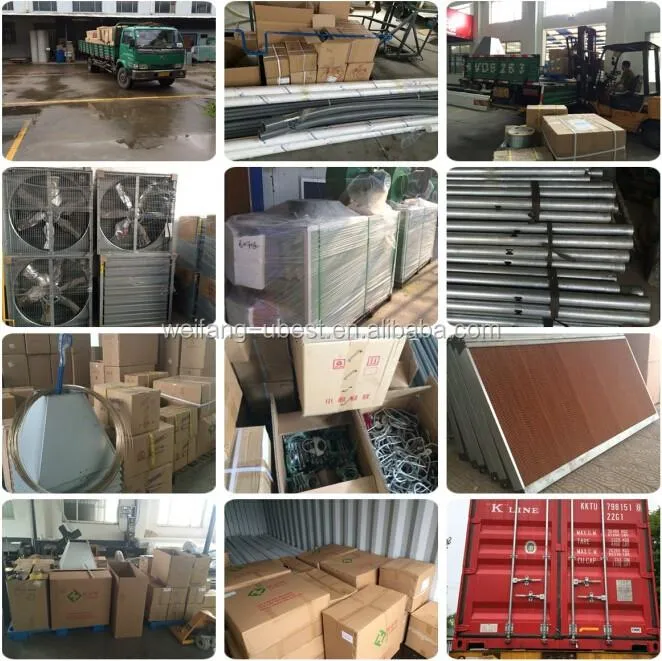

Packaging & Shipping

Shipment Method: FCL (Full Container Load) or LCL (Less than Container Load).
Delivery Lead Time: 10-15 working days following the initial deposit.
Packaging Details:
- Feeder pan: Packed assembled in carton boxes.
- Feeding pipe: 20pcs per bunch, shipped in bulk.
- Hanging system: Packed in carton boxes.
- Watering pipe: Pre-fitted with nipples, packed in plastic bags (20pcs per bag).
- Watering accessories (medicator, regulator, drip cup): Securely packed in carton boxes.

Frequently Asked Questions

Q1 What dimensions should I provide to get a precise quote for a poultry house?

To provide you with an accurate quote, please specify the length, width, and height of your planned poultry house.

Q2 Does the total order quantity impact the pricing?

Yes, we offer flexible volume-based discounts. Let us know the desired order quantity, and we will apply the appropriate discount.

Q3 Why is the market weight of the chickens and the rearing period needed?

The target market weight and the rearing period (specified in weeks) allow us to optimize feed flow, pan dimensions, and drinker capacities for your specific cycle.

Q4 Can the systems accommodate both laying hens and broiler chickens?

Yes, the systems are custom-configured depending on whether you raise laying hens or broiler chickens. Please specify your poultry type when ordering.

Q5 Do you support both cage breeding and on-the-ground breeding methods?

Yes, we provide specialized configurations tailored for birds raised on the ground or housed in cage systems.

Q6 How do local climate conditions affect the design of the poultry house?

We customize the structural design based on your local climate conditions, taking into account load factors such as snowfall, rainfall, wind velocity, and local earthquake risks.
