| Specification | Air Temp. (ºC) DB/ WB | Leaving Water Temp. (ºC) | LCM-60R | LCM-100R | LCM-150R | LCM-180R | |
|---|---|---|---|---|---|---|---|
| Heating | Capacity (kW) | 7/6 | 35 | 7.15 | 10.94 | 15.40 | 20.18 |
| Capacity (kW) | 7/6 | 55 | 6.29 | 9.19 | 11.23 | 14.97 | |
| Power Input (kW) | 7/6 | 35 | 1.45 | 2.18 | 3.26 | 4.21 | |
| Power Input (kW) | 7/6 | 55 | 2.01 | 2.93 | 4.21 | 5.56 | |
| COP (W/W) | 7/6 | 35 | 4.93 | 5.01 | 4.73 | 4.79 | |
| COP (W/W) | 7/6 | 55 | 3.13 | 3.14 | 2.67 | 2.69 | |
| Cooling | Capacity (kW) | 35 / 24 | 18 | 7.29 | 10.52 | 14.37 | 18.40 |
| Power Input (kW) | 35 / 24 | 18 | 1.59 | 2.50 | 3.56 | 4.90 | |
| EER (W/W) | 35 / 24 | 18 | 4.60 | 4.20 | 4.04 | 3.75 | |
| Sound Pressure Level (at 1 m) Rated [dB (A)] | 47 | 48 | 50 | 51 | |||
| Maximum Running Current (A) | 10 | 18 | 25 | 30 | |||
| Rated Water Flow Rate (at LWT 35ºC) (LPM) | 21 | 32 | 46 | 56 | |||
| Dimensions (Unit) (LxWxH) (mm) | 1044*421*757 | 1094*421*910 | 1094*451*1389 | 1094*451*1389 | |||
| Net Weight (kg) | 75 | 86 | 106 | 128 | |||
| Power Supply (V / Phase / Hz) | 220 ~ 240 / 1 / 50 | ||||||
| Refrigerant | R32 | ||||||

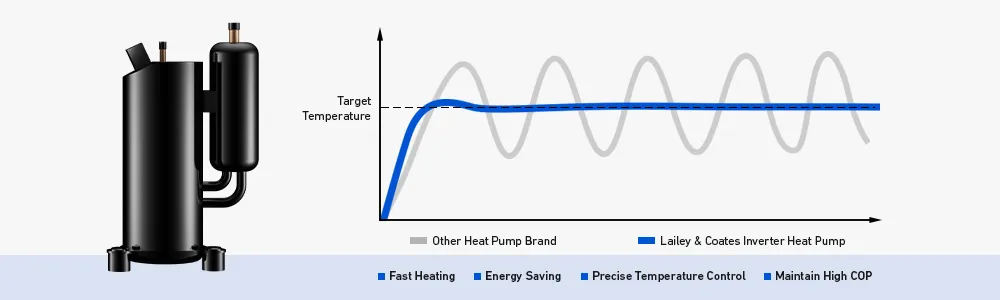

The application of an improved compressor and inverter technology synergies is a crucial element for the unit to be a top performer which can raise the energy efficiency and provide homeowners with greater cost-savings.
Home heating Series is specially developed with the most cutting-edge heat pump technology and modern design to meet stringent requirements for efficiency, stability and quietness. Not only does the home heating Series use R32 green gas, but it is also rated with an A+++ energy label. With a top energy rating of A+++, the unit is highly energy efficient and can greatly reduce energy bills for users.

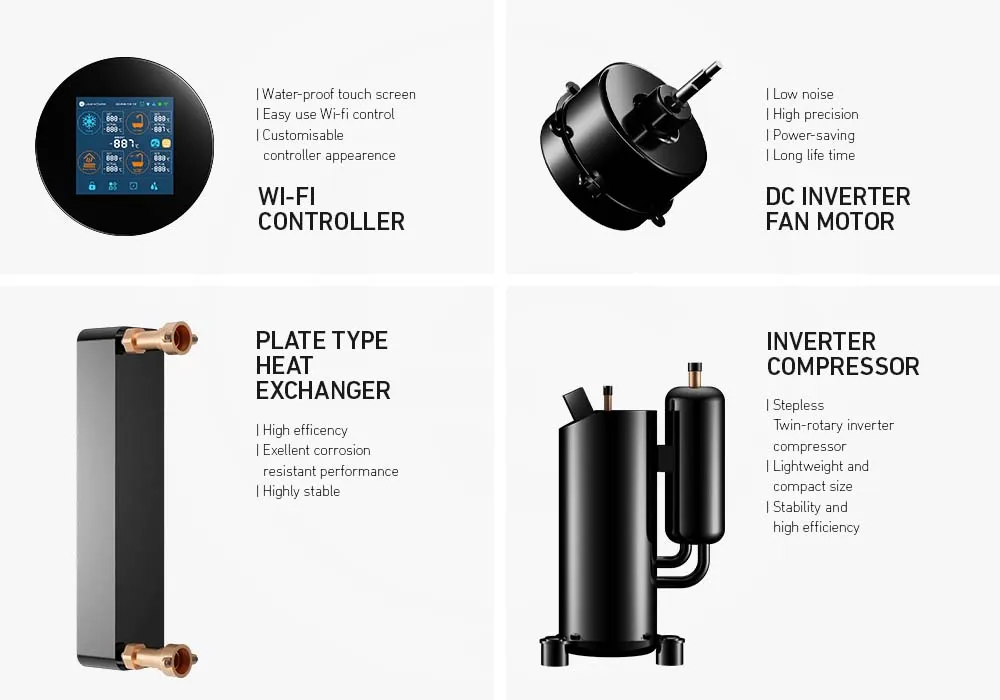

Full inverter compressor and DC brushless fans enable the units to run quietly. Meanwhile, new noise reduction measures are adopted to control the sound of the units at a satisfactory level. Our Self-developed Controller Series can achieve low noise running of 47dB(A) when testing at sound pressure.
The R32 refrigerant is more environmentally friendly compared to other traditional refrigerants. Its ability to enable an inverter heat pump to recharge and recycle more effectively than some other refrigerants means that the unit can run at much higher efficiencies.

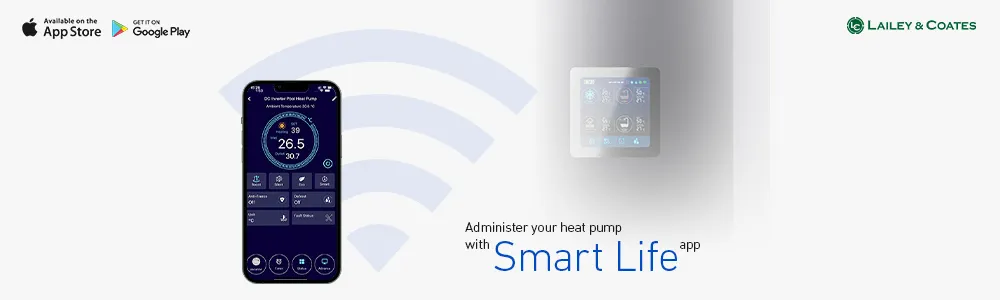

With a Wi-Fi and 4G/5G connection, you can take full control of your swimming pool heat pump on your smartphone via an app. The app can be found in the App Stores.

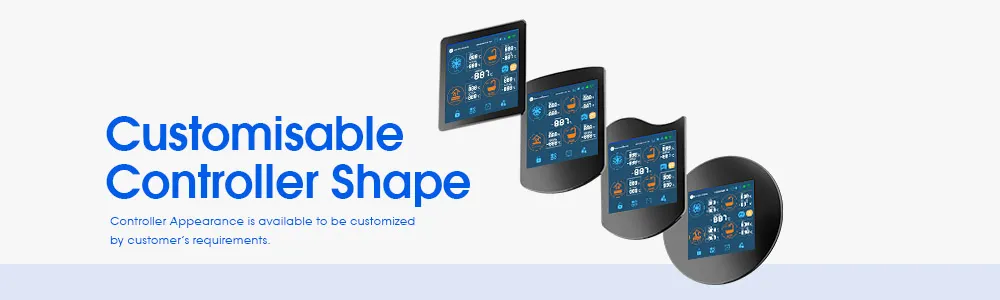

Controller Appearance is available to be customized by customer's requirements.

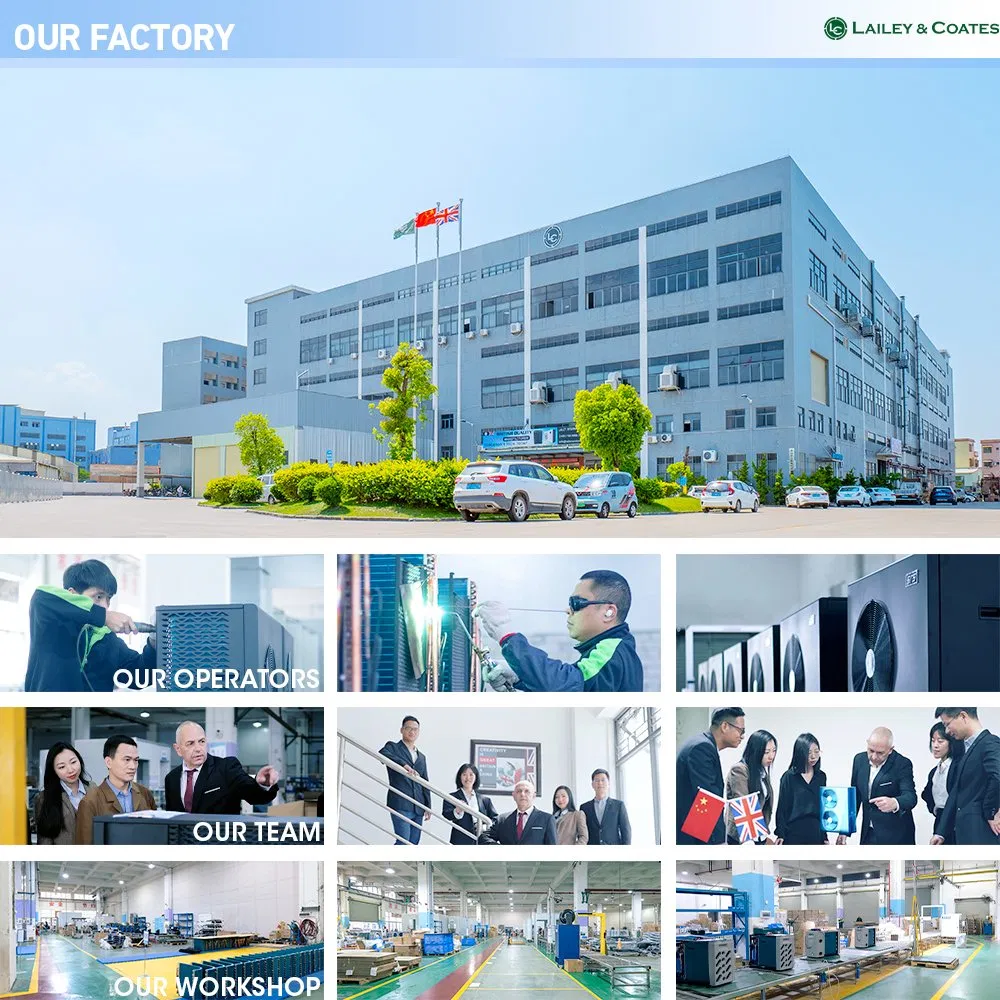

We are a British background OEM heat pump manufacturer in China. As a professional heat pump manufacturer, we have more than 10 years of R&D experience and technical storage, a strong R&D team, and many experienced heat pump engineers. We have passed the ISO9001 and ISO45001 system certification, and won many awards from the government, such as high-tech enterprise, enterprise above designated size, and industrial high growth award.
We manufacture different types of heat pumps, including DC inverter heat pumps, air source hot water heat pumps, and swimming pool heat pumps. Low temperature air source heat pump, inverter swimming pool heaters. They are produced based on the EN14511 standard with CCC, CE, CB, SAA, RoHS, TUV, and ERP certificates.
Focusing on the development of the international market over the years, our focus, professionalism, and customer-oriented spirit and service concept have earned us a reputation as one of the leading heat pump suppliers all over the world.
WITHIN 35 DAYS after receiving deposit.
L/C, T/T, D/P are available.
3-year-guarantee with FREE spare parts.
